Industrial brush rollers

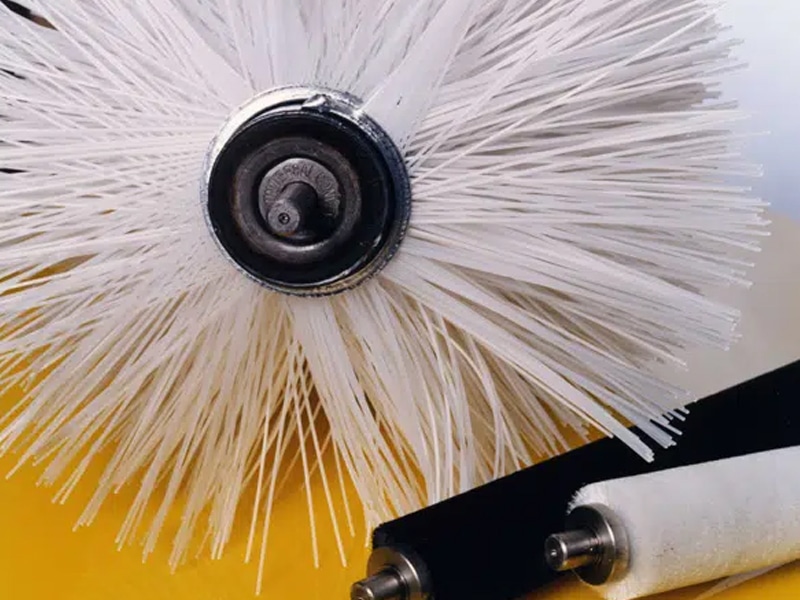

An industrial roller brush is a specialist brush, designed to be mounted on a rotating shaft, featuring bristles wound in spiral coils around a central tube made from metal or plastic.
Widdops are an industrial roller brush manufacturer with a difference. We produce all of our brushes in-house to the highest standards, making us one of the leading industrial roller brush suppliers in the UK.
As an industrial roller brush manufacturer, our roller brushes are made using our bespoke engineering and fabrication facilities. This allows customers to specify and custom design their industrial roller brush to best suit the desired end use, with a choice of filament materials to suit various applications.
Industrial roller brush manufacturer
Widdops’ bespoke manufacturing methods allow us to make industrial roller brushes in a range of sizes, filament materials, trim lengths, overall brush density, core shaft diameters, and lengths.
All industrial roller brushes supplied by Widdops are suitable for use in various applications, including but not limited to:
- Washing and cleaning
- Grinding and polishing
- Printing
- Pharmaceuticals
- Road sweepers
- Glass cleaning machines for double glazing
- Food processing and food preparation
- Recycling and waste management
Custom industrial roller brush suppliers
We manufacture industrial roller brush shaft cores in-house to exact customer specifications. However, due to manufacturing, handling, and delivery limitations, the following industrial roller shaft size restrictions do apply:
- Max roller shaft length = 4000mm (4 metres)
- Min roller shaft length = 199mm
- Max roller shaft diameter = 700mm
- Min roller shaft diameter = 25mm
The wire brush roller shaft core is mounted with a helically wound strip brush and then trimmed to length. Our standard size filament holder strip widths are 5mm, 6mm, 8mm, and 11mm (measuring across the base of the brush holder), with filament diameter sizes ranging from 0.15mm up to 3mm.
The application of the industrial roller brush will determine which materials are used for the bristle-holding strip, which can include:
- Galvanised mild steel
- 316 stainless steel
- 304 stainless steel
The type of material used for the brush holding strip and the diameter of the filament will influence the length of filament used.
As industrial roller brush suppliers, our dedicated sales department can advise you on the best brush roller solution for your requirements, so please feel free to contact us to discuss further.
Special requests and brush roller refurbishments
Widdops industrial brush manufacturers are able to supply industrial roller brushes as loose coil for customers to fit on site. We also have the capabilities to provide repair and refurbishment services for existing industrial roller brushes. Our engineering department will re-wrap existing brush rollers, repair damaged shafts, and provide replacement shafts where required.
Contact us now to discuss your requirements and find out more about Widdops industrial roller brushes.
Please also see our specialised Trommel Roller Brushes for other similar, heavier-duty applications.
To find out more about our industrial brush roller filling materials or to enquire about our custom-made specialist rollers, contact us today.
Frequently asked questions about our industrial roller brushes
-
An industrial roller brush is a specialist brush with bristles wound in spiral coils around a central tube made from metal or plastic, designed to be mounted on a rotating shaft. As an industrial roller brush manufacturer, the filament materials we use for the bristles can range from natural fibres to durable synthetics or metal, depending on your application.
-
Usually mounted onto machinery, industrial roller brushes can be used in a variety of applications. Depending on the filament material used, industrial roller brushes can be used alongside conveyor belts to clean, polish, dust, or remove dirt from factory processes.
-
If you’re looking for a trusted industrial roller brush supplier, you’ve come to the right place. Widdops is an industrial roller brush manufacturer supplying a variety of brushes, with the capability to design bespoke industrial roller brushes for almost any application.
-
Industrial roller brush manufacturers, like our dedicated production team at Widdops, design, prototype, and manufacture a range of brushes. With in-house capabilities, Widdops manufactures and supplies standard and bespoke industrial roller brushes suitable for use in a range of industries.
