Our industrial brush rollers are manufactured in-house utilising our diverse engineering and fabrication facilities. This allows customers to specify and custom design the roller brush depending on the desired end use.


Widdops supply industrial roller brushes in wide choice of sizes, filament materials, trim length, overall brush density, core shaft diameters & lengths for use in varying applications including but not limited to;

  • Washing & Cleaning
  • Grinding & polishing
  • Printing
  • Pharmaceuticals
  • Road sweepers
  • Glass cleaning machines for double glazing
  • Food processing & food prep
  • Recycling and waste management.

The roller shaft cores are machined in-house to exact customer specifications, however, due to manufacturing limitations, handling & delivery the following shaft size restrictions do apply;

  • Max roller shaft length = 6000mm (6metres)
  • Min roller shaft length = 199mm
  • Max roller shaft diameter = 700mm
  • Min roller shaft diameter = 25mm

The shaft core is then mounted with a helices wound strip brush then trimmed to length. Our standard size filament holder strip widths are 5mm, 6mm, 8mm and 11mm (measuring across the base of the brush holder) with filament diameter sizes ranging from 0.15mm up to 3mm.

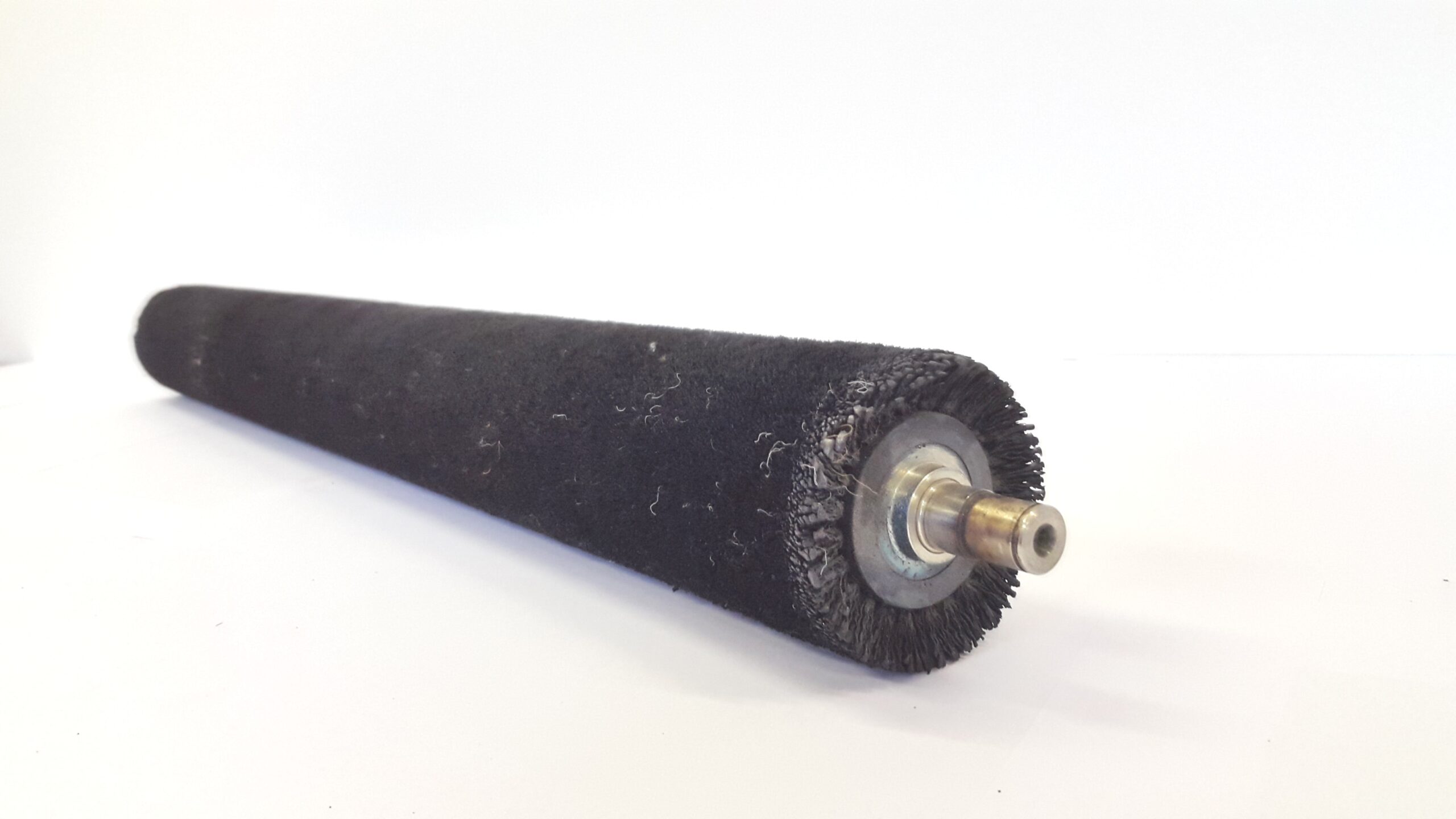

roller 1

spiral roller

paddle roller

The application of the industrial roller brush will determine which materials are used for the bristle holding strip, which can include:

  • Galvanised mild steel
  • 316 stainless steel
  • 304 stainless steel

The type of material used for the brush holding strip and the diameter of the filament will influence the length of filament used. Our sales department will advise on the best solution for your requirements so please feel free to contact us to discuss further.


Special requests & refurbishments

roller brushes-2

We are happy to supply industrial roller brushes as loose coil for customers to fit on site.

We also have the capabilities to provide repair and refurbishment services for existing industrial roller brushes. Our engineering department will re-wrap existing roller brushes, repair damaged shafts and provide replacement shafts where required.

Contact us now to discuss your requirements and find out more about industrial roller brushes from Widdops.

Please also see our specialised Trommel Roller Brushes for other similar heavier duty applications.
