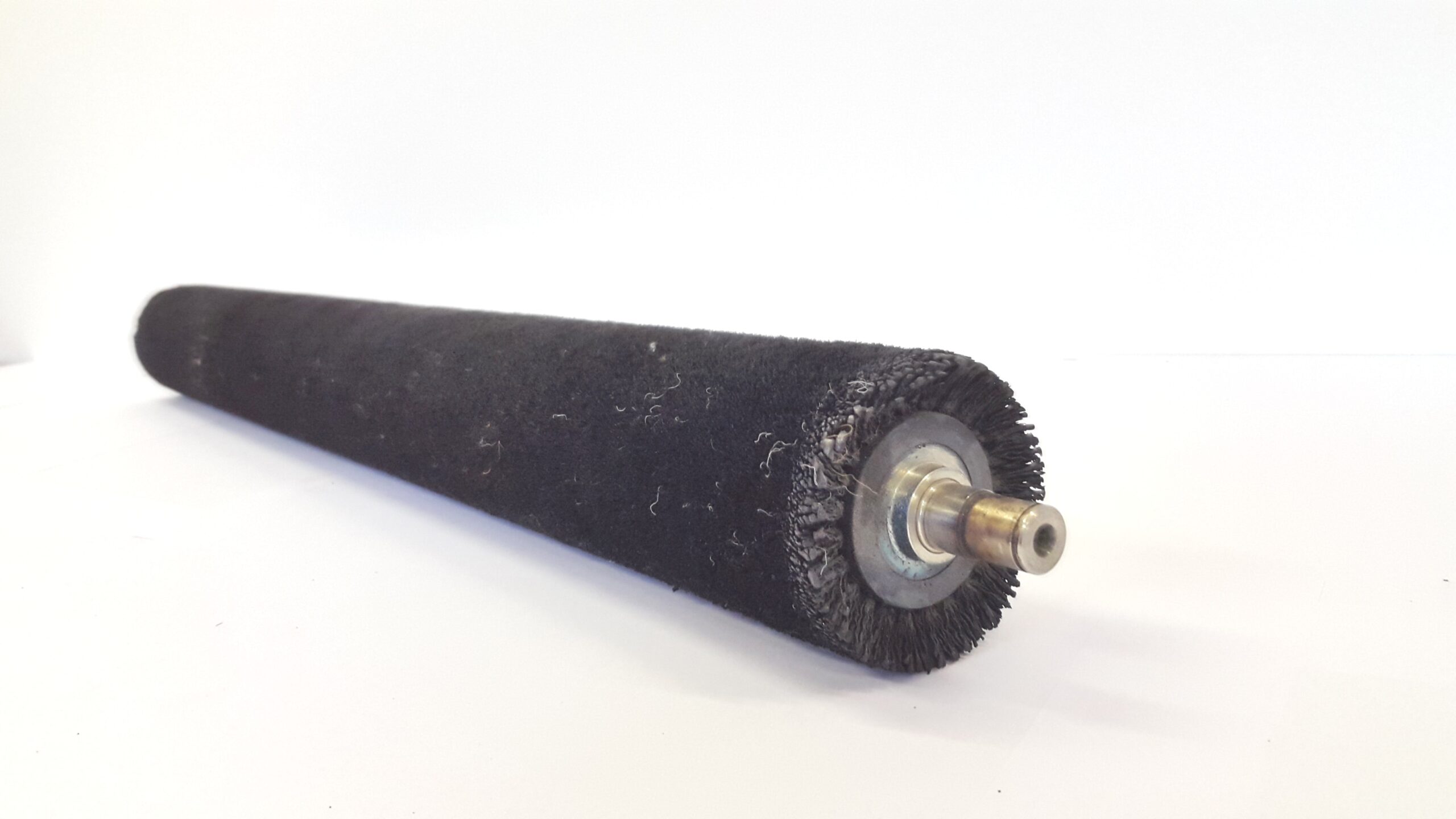

Industrial brush rollers
Widdops are industrial roller brush suppliers with a difference. We manufacture our brushes in house to the highest standards, making us one of the leading industrial brush manufacturers in the UK.
Our industrial roller brushes are manufactured utilising our bespoke engineering and fabrication facilities. This allows customers to specify and custom-design the roller brush depending on the desired end use.
Industrial roller brush manufacturer
Widdops industrial brush rollers come in a wide choice of sizes, filament materials, trim lengths, overall brush density, core shaft diameters, and lengths.
All Widdops industrial rollers are suitable for use in various applications, including but not limited to:
- Washing & Cleaning
- Grinding & polishing
- Printing
- Pharmaceuticals
- Road sweepers
- Glass cleaning machines for double glazing
- Food processing & food prep
- Recycling and waste management.
Custom industrial brush suppliers
The industrial roller brush shaft cores are machined in-house to exact customer specifications. However, due to manufacturing, handling, and delivery limitations, the following industrial roller shaft size restrictions do apply:
- Max roller shaft length = 4000mm (4metres)
- Min roller shaft length = 199mm
- Max roller shaft diameter = 700mm
- Min roller shaft diameter = 25mm
The wire brush roller shaft core is then mounted with a helically wound strip brush and then trimmed to length. Our standard size filament holder strip widths are 5mm, 6mm, 8mm, and 11mm (measuring across the base of the brush holder) with filament diameter sizes ranging from 0.15mm up to 3mm.
The application of the industrial roller brush will determine which materials are used for the bristle holding strip, which can include:
- Galvanised mild steel
- 316 stainless steel
- 304 stainless steel
The type of material used for the brush holding strip and the diameter of the filament will influence the length of filament used. Our sales department will advise on the best brush roller solution for your requirements, so please feel free to contact us to discuss further.
Special requests and brush roller refurbishments
As industrial brush manufacturers we are able to supply industrial roller brushes as loose coil for customers to fit on site.
We also have the capabilities to provide repair and refurbishment services for existing industrial roller brushes. Our engineering department will re-wrap existing brush rollers, repair damaged shafts, and provide replacement shafts where required.
Contact us now to discuss your requirements and find out more about industrial roller brushes from Widdops.
Please also see our specialised Trommel Roller Brushes for other similar, heavier-duty applications.
To find out more about our industrial brush roller filling materials or to enquire about our custom made specialist rollers, contact us today.
